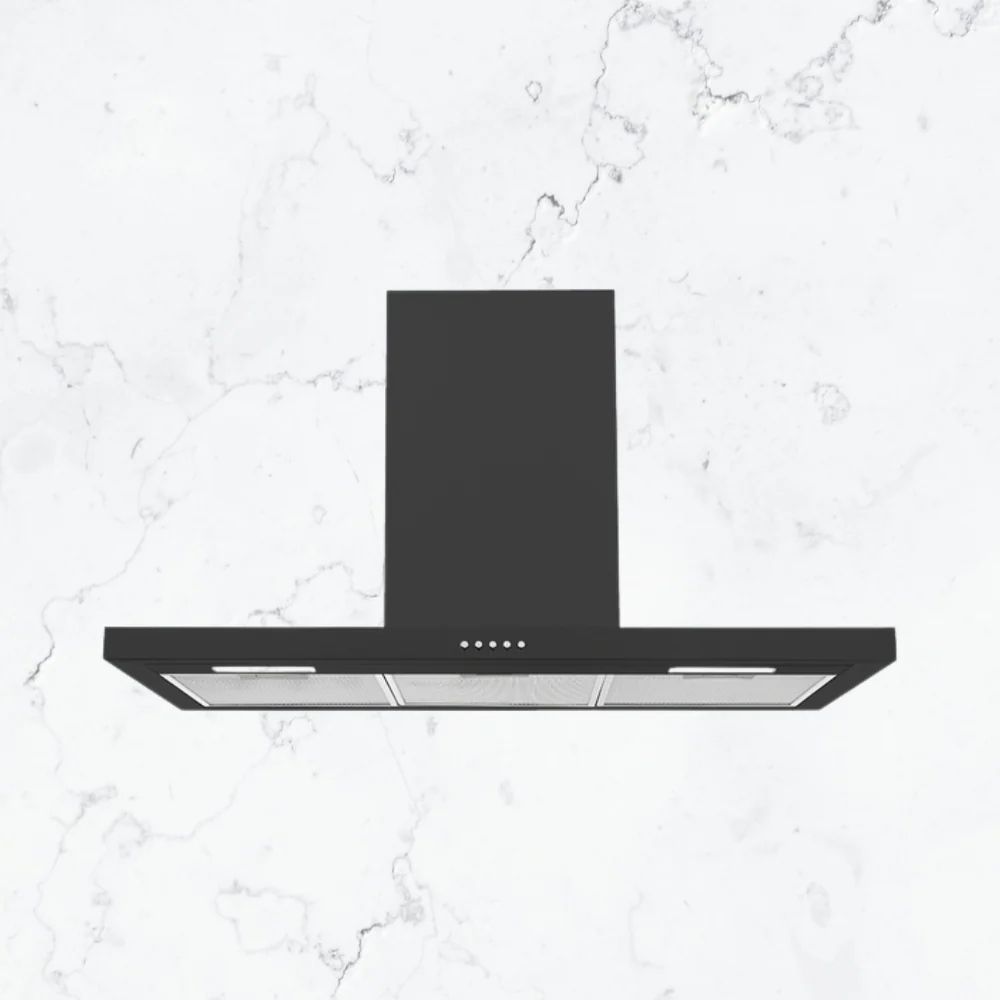

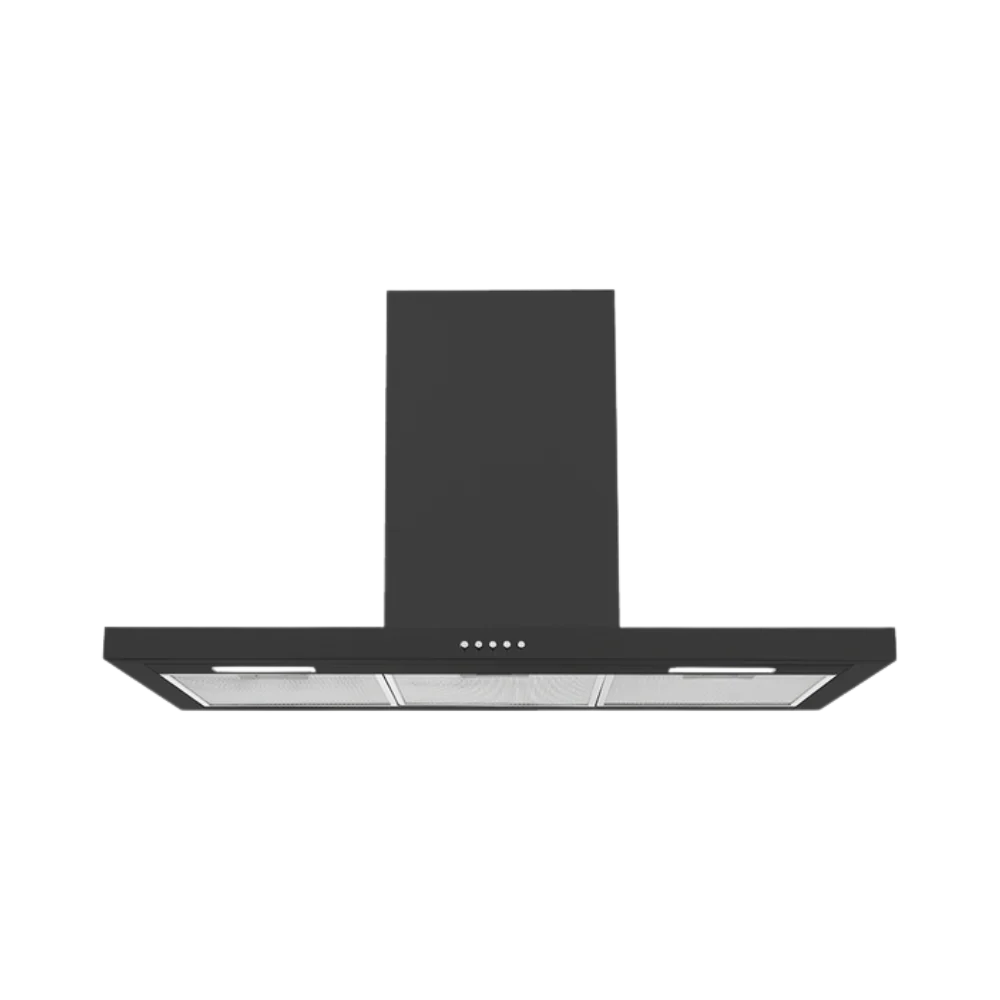

90cm 500 Series Box Chimney Wall Rangehood

With a black finish to suit your kitchen aesthetic, this stylish box chimney rangehood quickly removes steam, grease and odours in your kitchen.

• Effective 700m3/hr airflow

• Dishwasher-safe aluminium filters for easy cleaning

• Energy-efficient LED lighting illuminates your cooktop

• Ducted or recirculation options for flexible installation

Accessories (included)

• Aluminium filter    H0530063372

• Chimney extension    H0530073719

• Light bulb    H0530061789

• Recirculation carbon filter    H0530060509 (sold separately)

• Recirculation kit    H0530062211 (sold separately)


Fan ratings

• Maximum air movement    700m³/hr


Installation and cleaning

• Air outlet size    150mm

• Dishwasher safe filters

• Ducted    Top extraction

• Recirculation    Optional - top extraction

• Two piece height adjustable flue


Performance

• Extraction type    Surface

• Fan speeds    3

• Filter type    Mesh

• Number of filters    3


Power requirements

• Supply frequency    50Hz

• Supply voltage    220 - 240V


Product dimensions

• Depth    500mm

• Height    540 - 1020mm

• Width    898mm


Product information

• Control type    Push button


Ventilation features

• Light type    LED 2 x 2W


Warranty

• Parts and labour    2 years
