Specification

Material: #304 Stainless Steel

Finish : Satin Stainless Steel

Tubing: 1.2mm #304 Stainless Steel - 32mmØ

Mounting Bracket, Brace, NC Housing::

• 2.5mm Formed #304 Stainless Steel
• Housing unit for Nurse Call Button swivels which allows for unit to be universal and can therefore be used as a left hand or right hand pull down grab rail

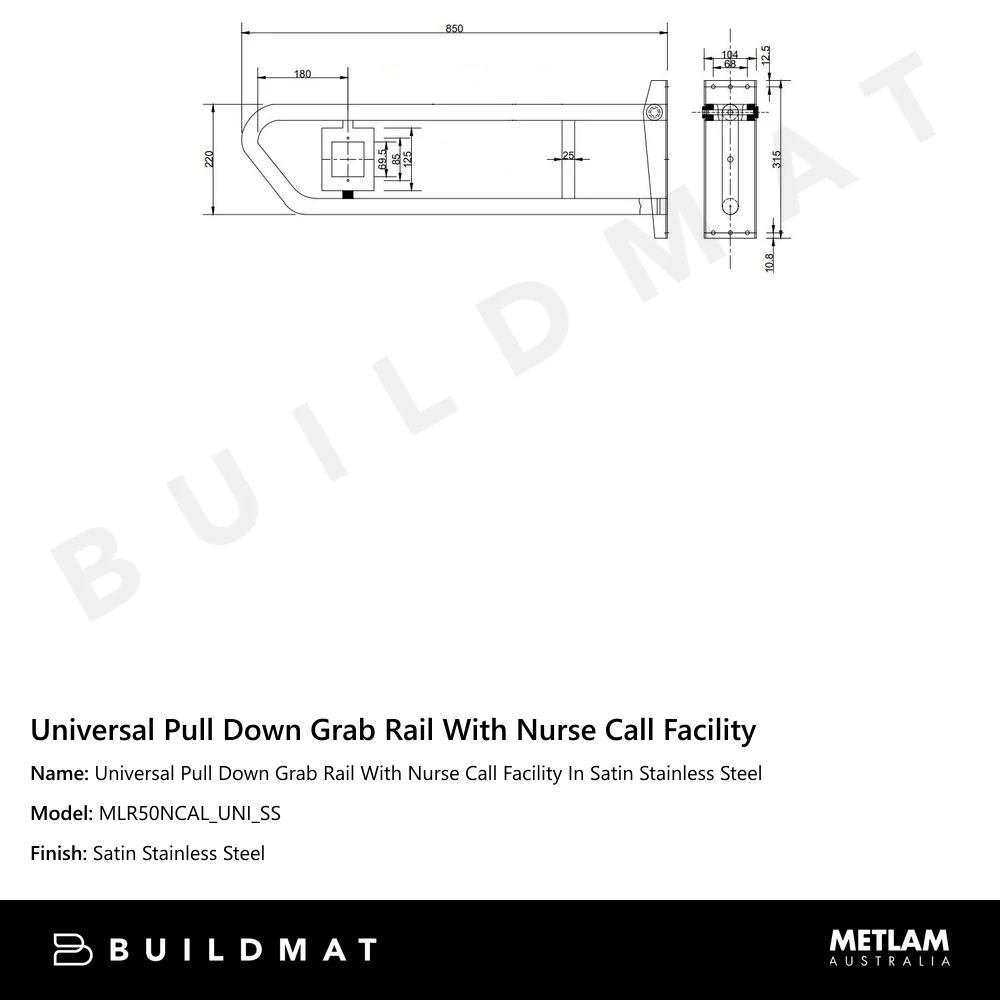

Overall Dimensions: 850mmL x 315mmH

Grab Rail: 215mmH from the outer edge to edge

Mounting Bracket: 104mmW x 315mmH x 30~50mmD x 2.5mmT

Mounting Holes: 7 off by 8mmØ

Features: Unit is Seamless Welded and Polished
